Price:
17,000.00 ৳

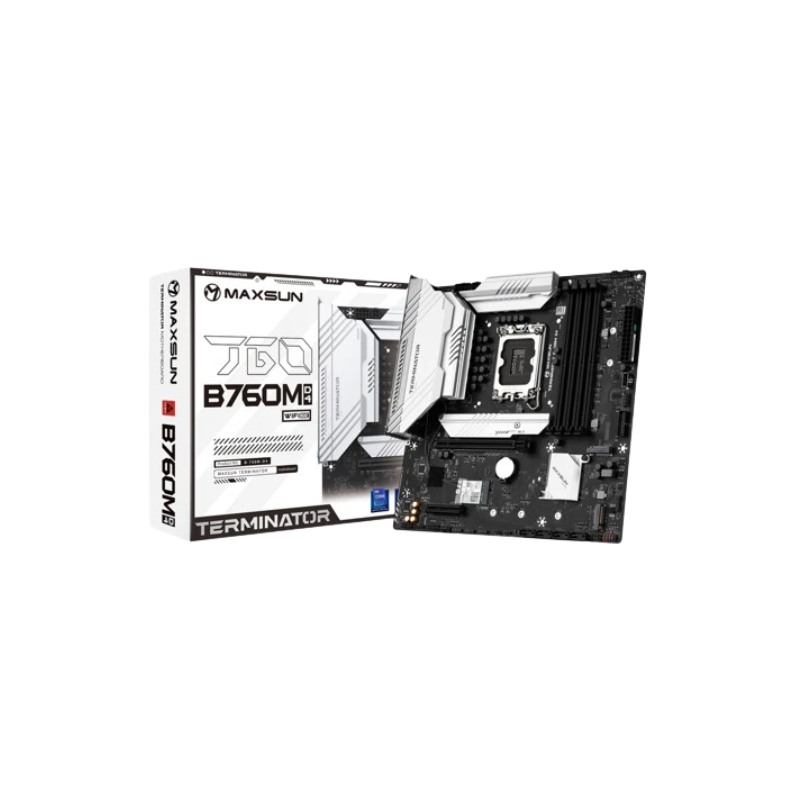

MAXSUN Terminator B760M D4 WIFI6E Motherboard
Key Features
Chipset: INTEL B760
LAN: RTL8125BG 2.5G LAN
OS: Windows 64-bit
Form Factor: M-ATX
| Memory | |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode |
| Storage | |
| Storage | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Graphics | |
| Graphics | 1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Audio & Microphone | |
| Audio | Realtek® ALC897 Codec 5.1-Channel High Definition Audio |
| Networking & Connectivity | |
| Connectivity | Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Software | |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Technical Info | |
| CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| LED Type | 4x Distributed Debug LED |
| Ports | |
| Internal I/O Ports | 1x 24-pin Power Connector (ATX_PWR) 1x 8+4-pin Power Connector (CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x 4-Pin SPEAKER 1x Front Audio 1x M.2 slots (Key-E) 1x COM_A Port 1x TPM pin header (Support TPM 2.0) |
| USB | Front USB (Total 5 ports): 1x USB 3.2 Gen2x2 Type C 2x USB 3.2 Gen1 Type A 2x USB 2.0 Rear USB (Total 8 ports): 2x USB 3.2 Gen1 Type A 6x USB 2.0 |
| Physical Specification | |
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot |
| Form Factor | M-ATX 245mm x 245mm |
| Warranty Information | |
| Warranty | 3 Years |
Description
MAXSUN Terminator B760M D4 WIFI6E Motherboard in Bangladesh
The Maxsun Terminator B760M D4 WIFI6E Motherboard, available at TechLand BD, is a top-tier motherboard designed for high-performance computing. It features an Intel B760 chipset and supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors with an LGA 1700 socket. The motherboard supports DDR4 memory with a maximum capacity of 128GB and a wide range of bus speeds from 2133 MHz to 5333 MHz (O.C.). It also supports Intel® XMP 2.0 OC and dual-controller dual-channel mode. For graphics, it offers 1x DisplayPort 1.4 and 1x HDMI™ port that supports up to 4K@30Hz. The motherboard also includes 1x PCIe 5.0 x16 slot and 1x PCIe 3.0 x4 slot for expansion. For storage, it supports M.2 SSDs (2242/2280/22110) with PCIe 4.0 x4 mode and has 4x SATA 6Gb/s ports. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard features a total of 13 USB ports, a Realtek® RTL8125BG 2.5G LAN, and Intel® Wi-Fi 6E AX211 for wireless connectivity. It also supports Bluetooth® 5.3. The motherboard features a Realtek® ALC897 codec for audio, providing a 5.1-channel high-definition audio experience. The motherboard also includes a variety of internal I/O ports and features 4x distributed debug LED. It supports Windows® 11 64-bit and Windows® 10 64-bit operating systems. The Maxsun Terminator B760M D4 WIFI6E Motherboard comes in an M-ATX form factor with dimensions of 245mm x 245mm.
